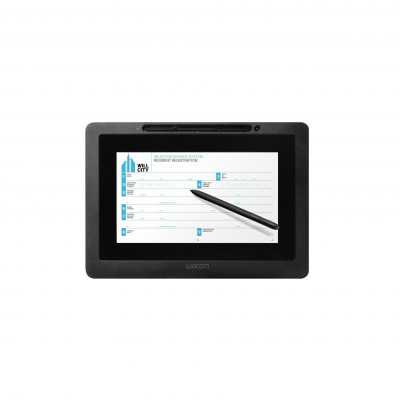

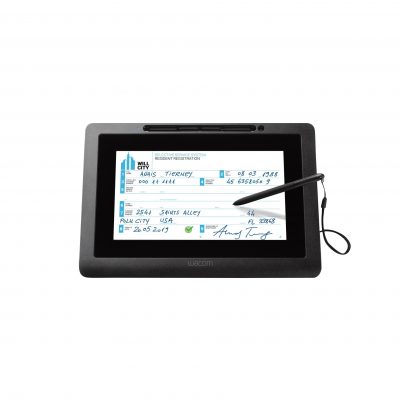

Wacom DTU-1031AX Pen Display to Capture Digital Signature

The DTU-1031AX Pen Display is our most economical device for viewing, annotating and signing full-size documents electronically. It is ideal for organisations that need a compact device to let customers read and sign documents on screen.

The DTU 1031AX is easy to integrate into a kiosk or POS environments with minimal effort and clutter. It’s also comfortable and intuitive for people to use in hand, or lying flat on a counter.

In addition, when not in document mode, the DTU-1031AX can display slideshows or advertising videos. This helps organisations run promotions and up-sell with minimum effort and cost.

Key Features and Benefits

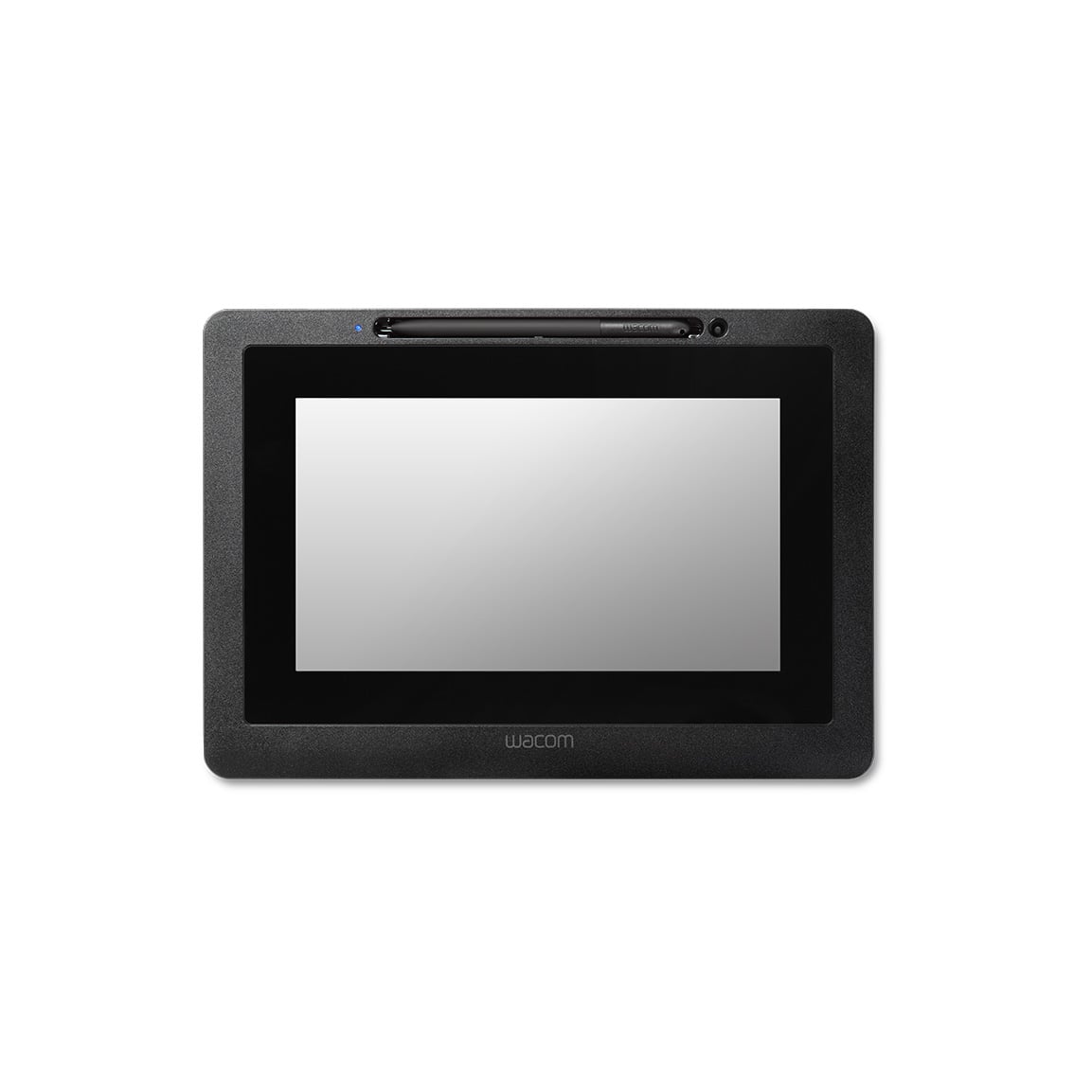

Optimal user comfort with the 10.1”, 1024 x 600 resolution, colour LCD panel that allows easy document viewing and signing
Secure transactions enabled by advanced AES256/RSA2048 encryption
Unique hardware ID (UID) to identify the exact unit used for any transaction
Minimal installation clutter with a single USB cable that supplies power and data, minimising clutter at the counter or point-of-sale
Highly accurate signatures and writing with the patented Wacom cordless and battery-free pen, featuring 512 levels of pressure sensitivity

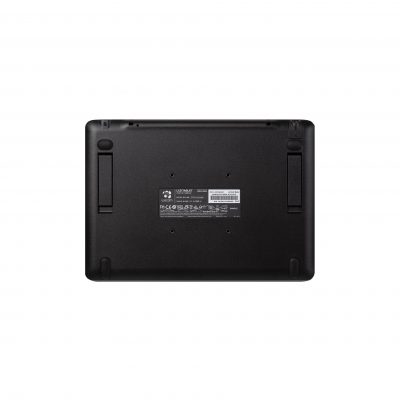

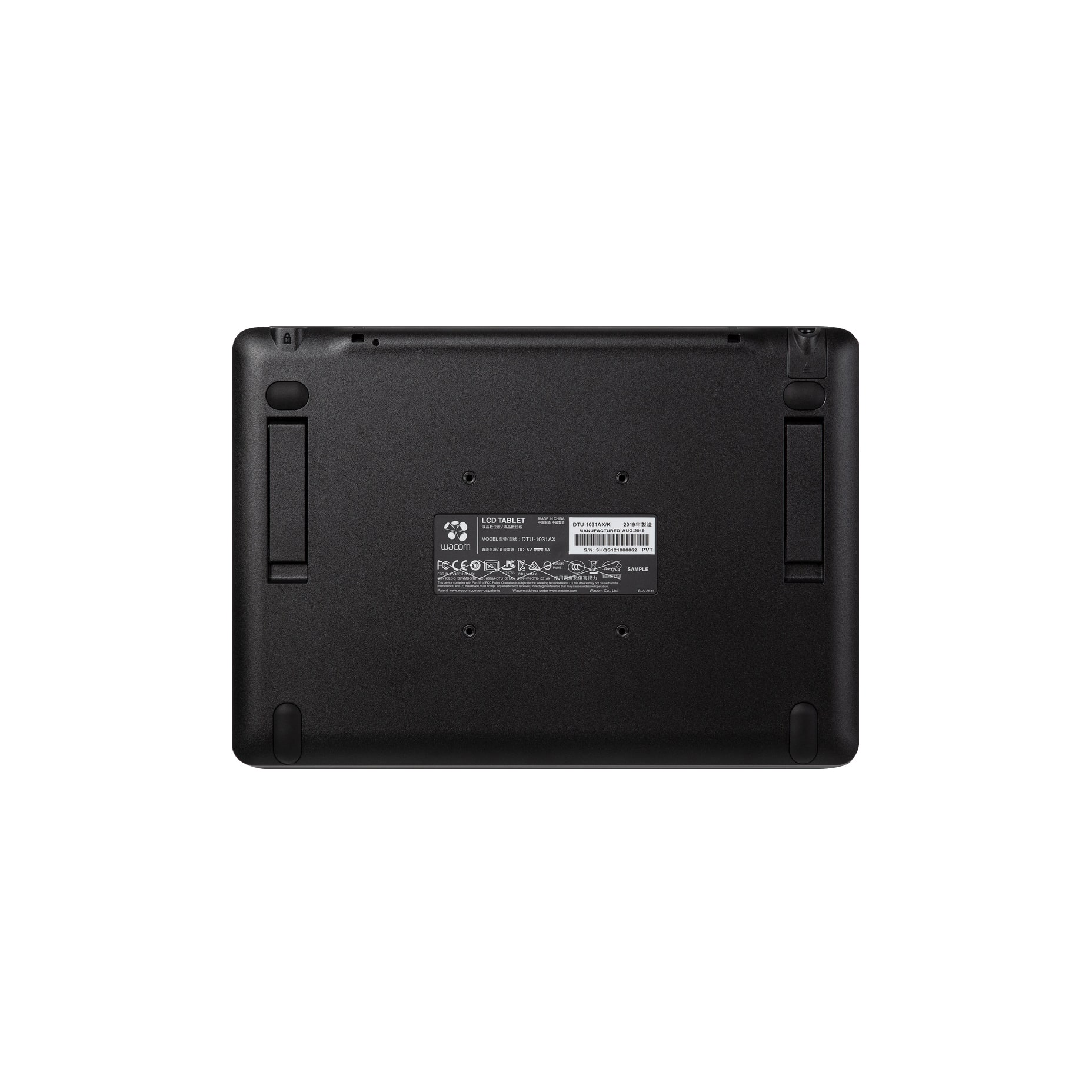

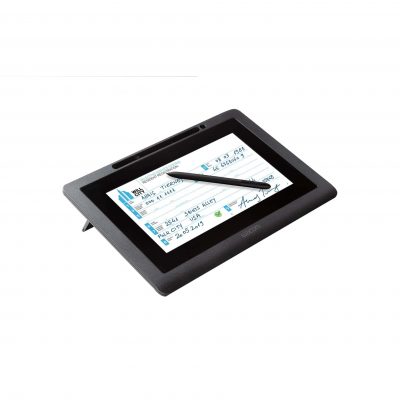

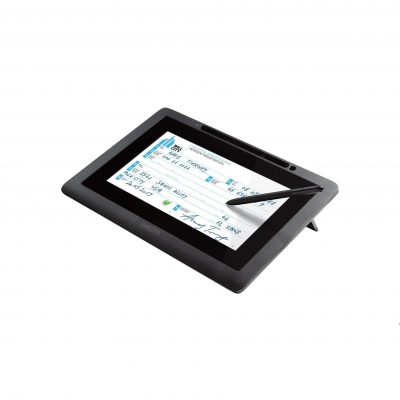

Flexible working position via a slim profile that allows the device to be used flat on the counter, or at an angle with the integrated stand. VESA mounting holes allow for mounting options or the use of third-party arms and stands
Kensington® Security Slot to secure the unit when needed
Outstanding durability via the scratch-resistant hardened cover glass that provides easier viewing in different lighting conditions

General Specifications

Dimensions (W x H x D) 12.2 x 8.5 x 0.6 in / 310 x 217 x 14 mm
Weight (including stand) 2.4 lb / 1.1 kg
Stand inclination 18° or flat
Power supply USB bus power: 5 VDC
Power consumption 5W maximum
Communication interface USB 2.0 High-Speed
Supported operating systems Windows 10 / 8.1 / 7 (32-bit, 64-bit),
Mac OSX 10.12 or later

Pad and Pen

Technology Electromagnetic Resonance (EMR)
Active area size 8.77x 4.93 in / 222.72 x 125.28 mm
Coordinate resolution 0.01 mm/point (2540 lpi)
Coordinate accuracy ±0.02 in / ±0.5 mm (center)
Report rate 200 points per second
Pressure levels 512
Encryption AES 256 / RSA 2048
Reading height 0.2 in or more / 5 mm or more (center)

LCD Screen

LCD Display Type TFT
Cover glass surface Tempered glass
Screen dimensions 10.1 in
Aspect ratio 16:9
Native resolution 1024 x 600 pixels
Video inputUSB 2.0 High-Speed (Common with Communication IF)
Viewing angles (horizontal/vertical) 140° (70/70) / 120° (60/60) (typical)
Contrast ratio 500:1 (typical)
Luminance (brightness) 0.13 cd/in² / 200 cd/m² (typical)
Display colors 16.7 M colors

Miscellaneous

Pen holder Integrated pen compartment, pen holder
Security lock slot Yes
Mounting system VESA 2.95 in / 75 mm
Drivers Wacom driver recommended (Works also as standard HID without Wacom driver) MCT driver required
