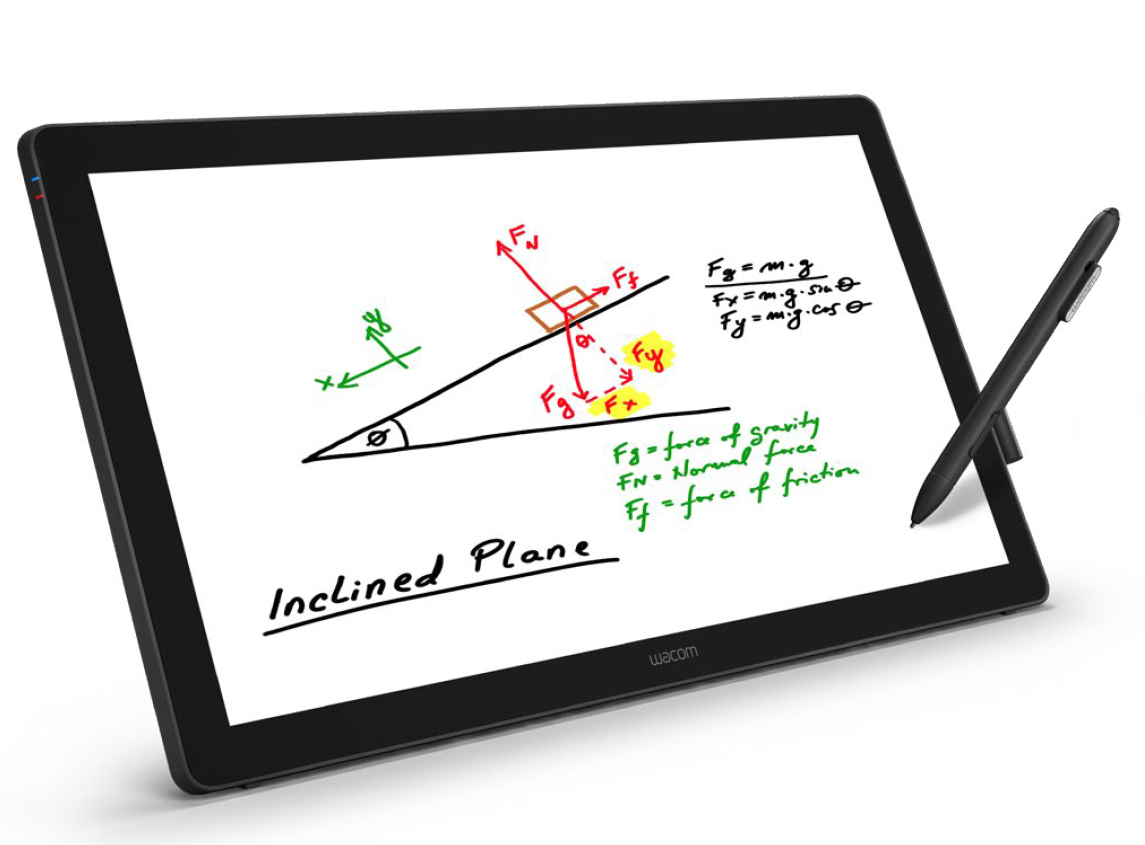

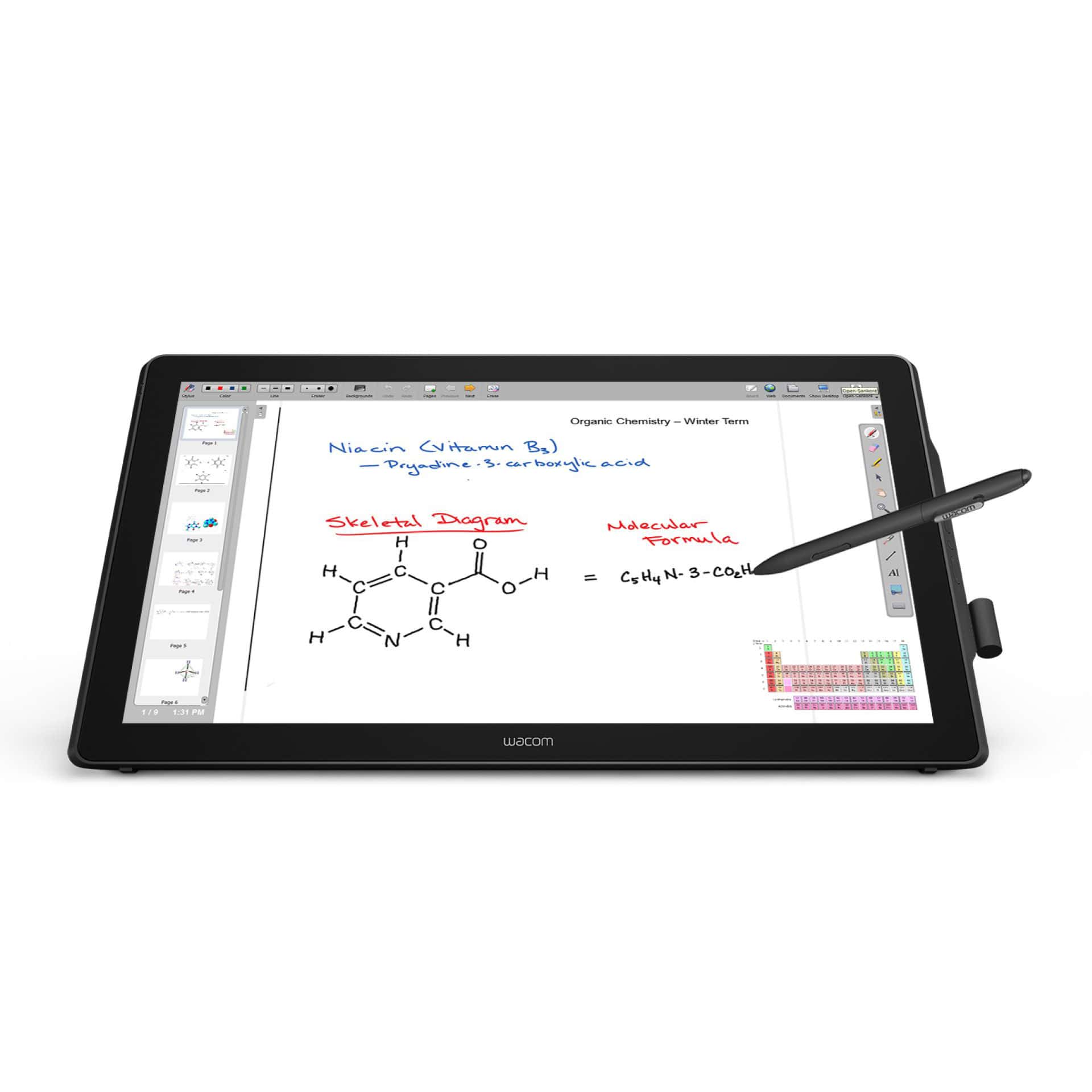

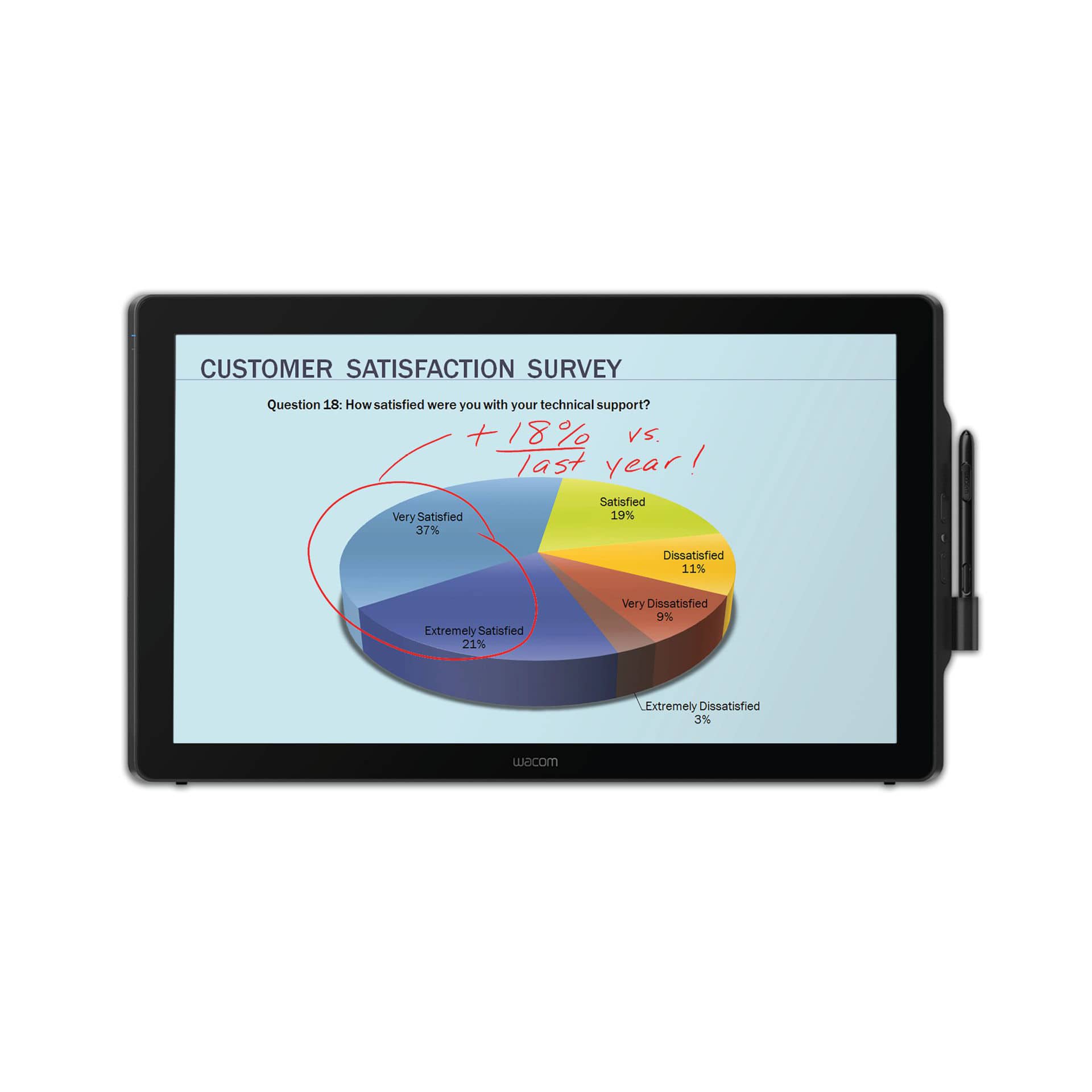

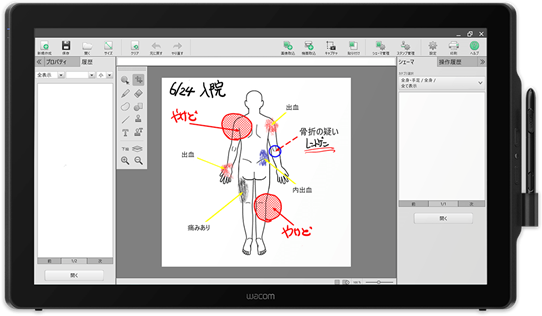

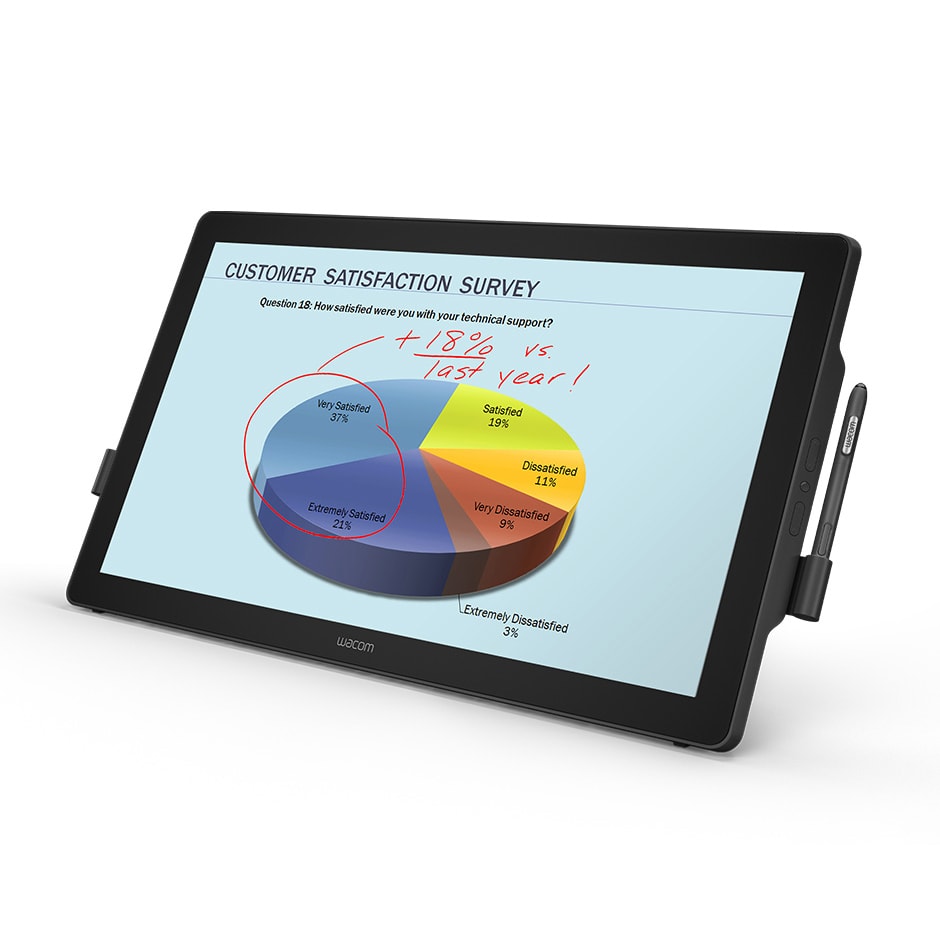

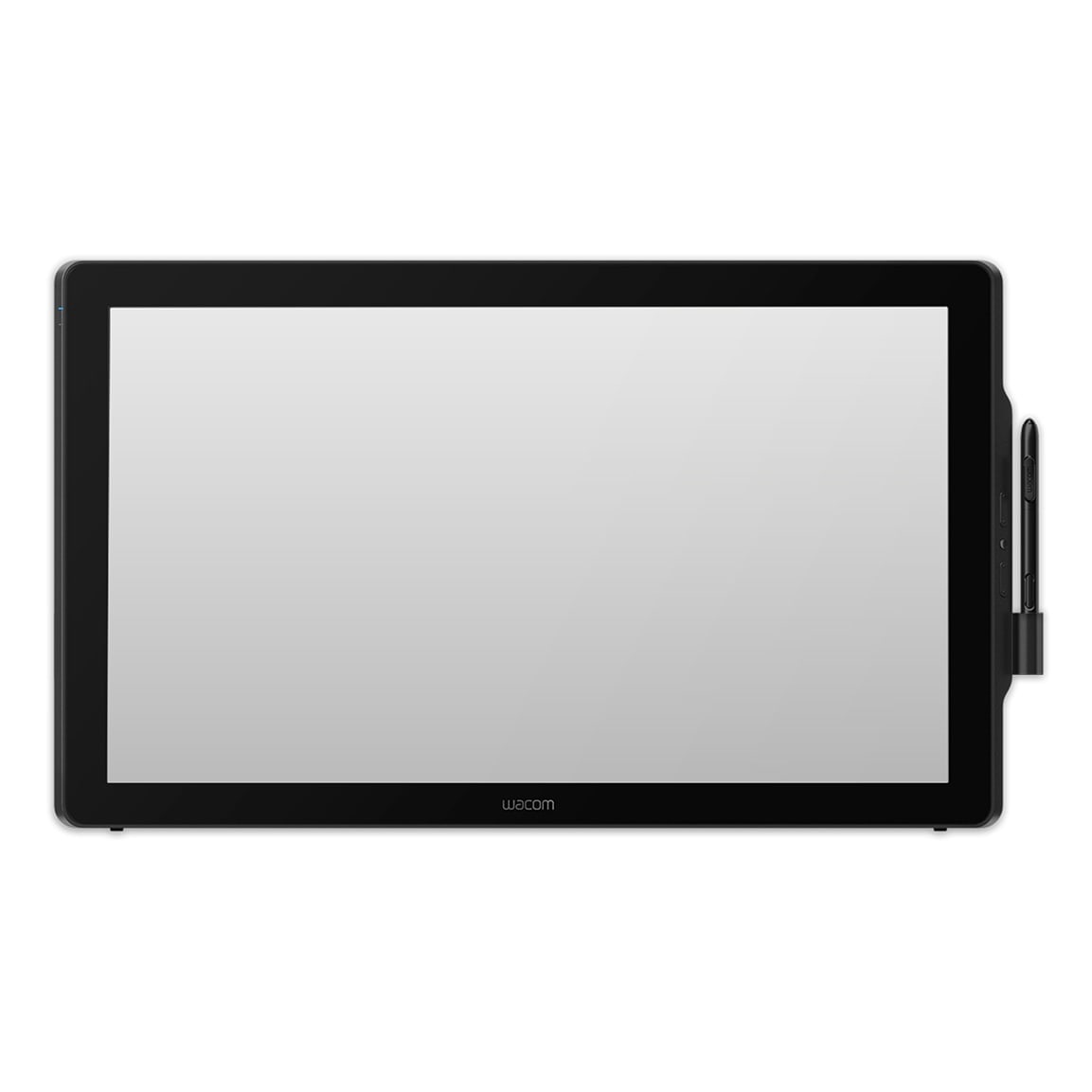

Featuring 24-inch, full HD displays, DTH-2452 is Wacom’s large pen displays for business customers. The generous active area provides a comfortable work surface for writing and signing eDocuments or annotating directly on presentations. Its multi-touch screen also supports touch gestures and navigation. And with 2048 levels of pen pressure, users can enjoy precise drawing, writing, and annotating, plus enhanced biometric signature capture.
Key Features and Benefits
- Optimal user comfort with the large 23.8” color LCD panel that offers a generous working area and a wide viewing angle
- Biometrically-accurate input precision with 2048 levels of digital pen pressure for precise drawing, writing, and annotating, plus enhanced biometric signature capture
- Flexible display options with support for both analog and digital connections with DVI-I passthrough connections and HDCP compliance

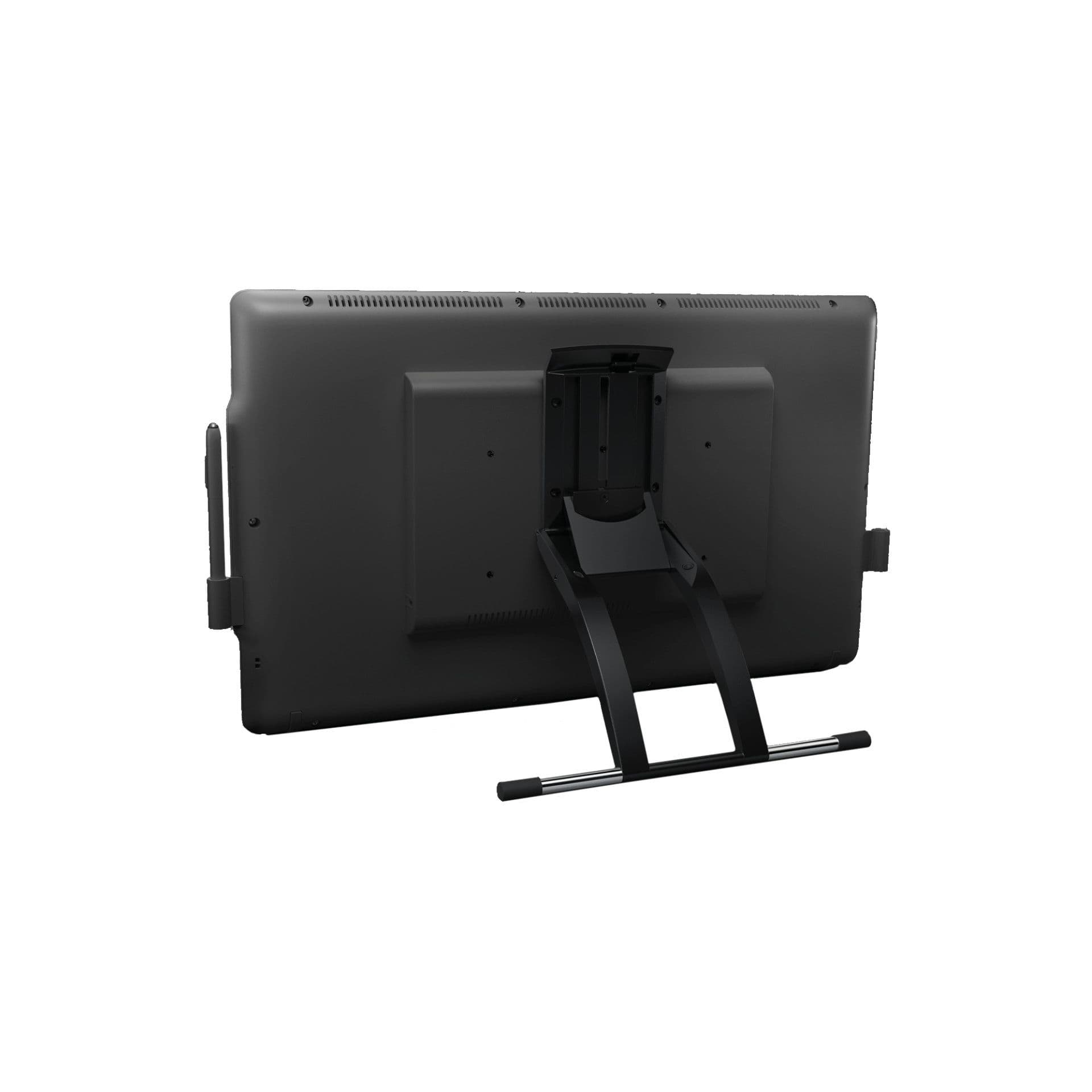

- Versatile usage in any working environment with a flexible stand, allowing the device to be used at multiple angles, and built-in standard VESA mounts to allow the use of 3rd-party stands
- Intuitive navigation with support for common gestures through multi-touch functionality (DTH-2452 only)

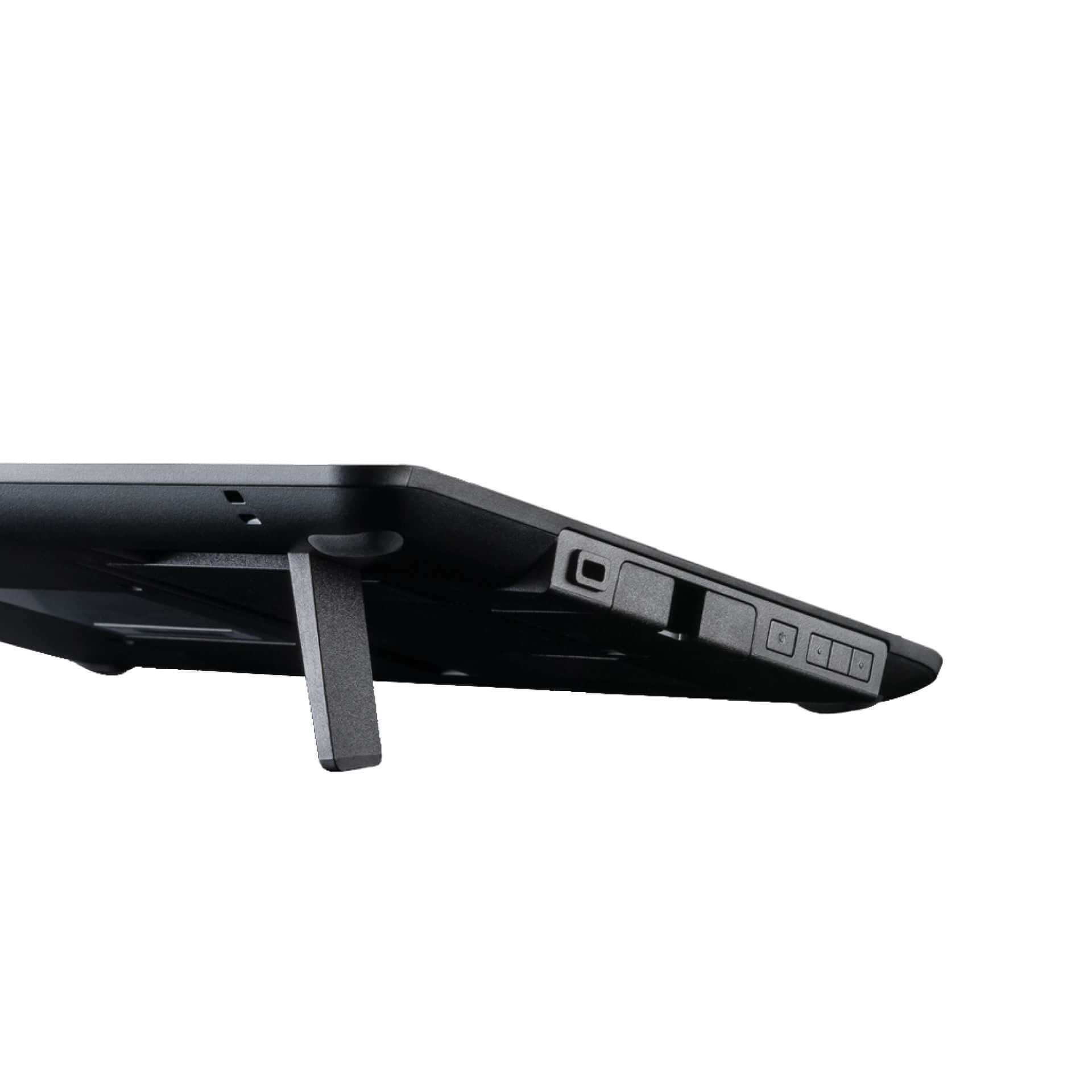

- Ease of use is enhanced with 4 user-assignable ExpressKeys to access common functions or tools, plus an integrated USB port to provide easy access to users’ favorite USB devices
General Specifications
Dimensions (W x H x D, excluding stand) 23.66 x 14 x 1.8 inches / 601 x 356 x 46 mm
Weight (including stand) 15.9 lbs / 7.2 kg (without stand)

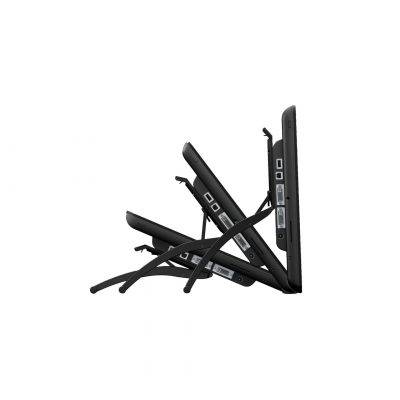

Stand inclination 11° – 73° adjustable stand
Power supply AC 100 ~ 240V, 50/60 Hz
Power consumption 45 W or lower, Power Save mode: 0.5 W or lower, Power OFF mode: 0.5 W or lower
Communication interface USB
Programmable buttons 4
Supported operating systems Windows 10 / 8.1 / 7 (32-bit, 64-bit) Mac OSX 10.11 or later
Pad and Pen
Reading Technology Electromagenetic Resonance (EMR)
Active area size 23.8“ diagonal (20,75 x 11.65 inches / 527 x 296 mm)
Coordinate resolution 2540 lpi
Coordinate accuracy ±0.02 inches / ±0.5 mm (center) for DTK-2451, ±0.04 inches / ±1.0 mm (center) for DTH-2452
Report rate 187 points per second for DTK-2451, 100 points per second for DTH-2452
Pressure levels 2048
Encryption AES 256 / RSA 2048
Reading height 0.4 inches / 10 mm or more (center)
LCD Screen
LCD Panel Type VA
Touch Input DTK-2451: No / DTH-2452: Yes
Cover glass surface Tempered AG etched glass
Aspect ratio 16:9
Native resolution 1920 x 1080 pixels
Video input DVI-I
Viewing angles (horizontal/vertical) 178° / 178°
Colours 16.7M colors
Luminance (brightness) 0.13 cd/in² / 210 cd/m² (typical)
Contrast ratio 1000:1 (typical)
Response time 16 ms (typical)
Miscellaneous
Pen storage Pen holder
Security lock slot Yes, Kensington
Mounting system VESA 3.93 x 7.87 inches / 100 x 200 mm
Signature software compatability Compatible with signature / eSign software and Wacom sign pro PDF; C++, .NET and Java SDK/API available for developers
Drivers Wacom driver required, SDK/API available for developers
Package content DTK-2451 or DTH-2452, adjustable display stand, pen with eraser, pen holder, attachment, pen tether, warranty card, QSG, IPI, DVI-D cable, DVI-I to VGA Cable, USB cable, AC adapter, power cable
